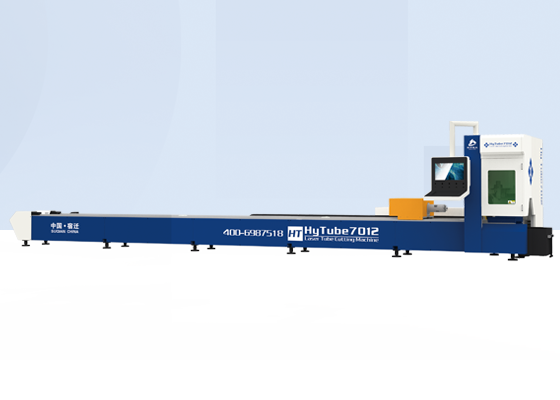

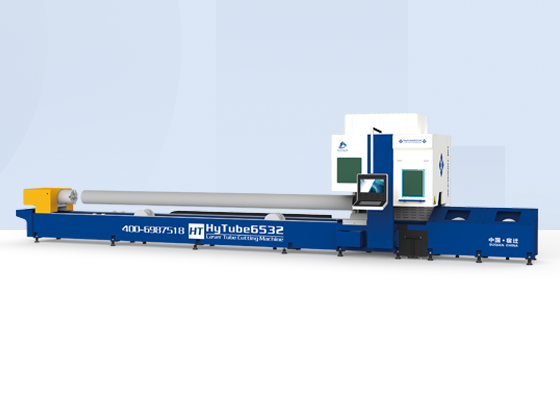

HyTube Series Ⅰ Automatic Professional Laser tube Cutting System

 Tip: Click on the picture to enlarge

Technology Advantage

?  Using the bus numerical control system based on Windows operating system, laser tube cutting machine dedicated platform,

integrated laser cutting control dedicated functional module, powerful function, good human-machine interface, simple operation;

?  Professional pipe cutting software is one of the core technologies for nc pipe cutting machine to achieve "full time cutting and

efficient cutting", and is the fundamental guarantee for effectively saving materials and improving cutting efficiency;

?  The capacitive sensing cutting head produced by German PRECITEC has high induction precision, sensitive response and the

most stable and reliable performance;

?  The unique floating managed device keeps contact with the surface of the tube while the tube is being fed and rotated. The

supporting force is set according to the specification of the tube to ensure effective support, prevent the sagging of the tube,

reduce the swing of the axis during the rotation of the tube, and improve the machining accuracy;

?  Full automatic loading function reduces the number of operators and improves the processing efficiency;

?  The automatic section identification system of pipe can be used for mixing and feeding of various pipe materials, automatically

indicating the type of pipe, automatically retrieving the process library and indicating the available processing programs;

?  SMC high precision servo proportional valve, precise control of cutting auxiliary gas pressure and chuck clamping force size,

in order to achieve the best cutting effect;

?  The linear positioning speed of the pipe can reach 100m/min, and the rotating positioning speed can reach 120m/min。
