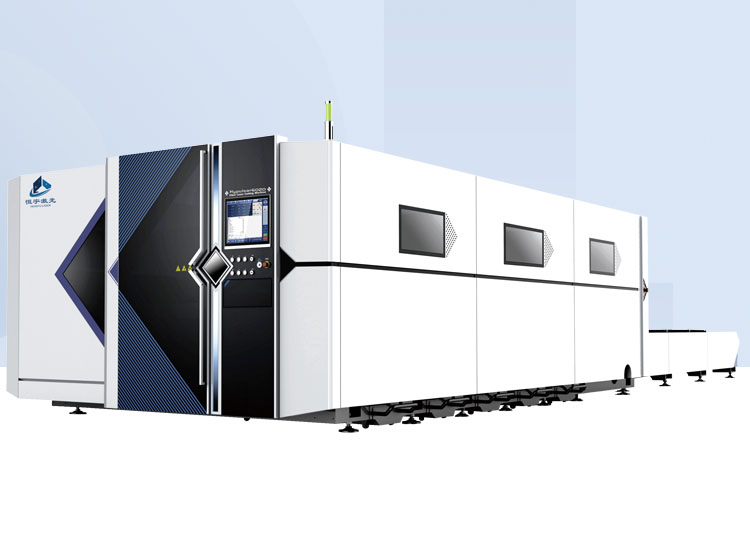

HyPulsar Cheetah Series Laser Cutting Machine

 Tip: Click on the picture to enlarge

Introduction & Application

       HyPulsar cheetah series laser cutting system integration of the latest generation of optical fiber laser, combined with the

company's independent design gantry CNC machine tools, the machine bed adopts high strength integral welding body, after

high temperature secondary annealing heat treatment process, large gantry milling machine precision processing, with good

rigidity and stability; The beam adopts the patented cast aluminum beam, which has the advantages of high strength, light

weight and good rigidity. Running with imported high speed gear and rack drive, high precision and fast speed; It is mainly

used for rapid and precise cutting of sheet metal under 50mm.

      Widely used in metal crafts, hardware products, precision machinery, auto parts, glasses, jewelry, nameplates, electronics,

toys, advertising and other industries.


Technology Advantage

? Excellent dynamic: high strength integral welding body, special process aluminum beam, double gantry drive;

? High cutting efficiency: high acceleration, high air movement speed, professional nesting software assistance;

? Extremely high stability: EtherCAT bus control, network transmission, free from external interference, automatic centralized

lubrication;

? Extremely high electro-optical conversion efficiency: fiber laser cutting machine than CO2 laser cutting machine electrooptical

conversion efficiency is three times higher, energy saving and environmental protection;

? Low maintenance cost: no laser working gas; Optical fiber transmission, no need for reflective lens, can save a lot of

maintenance costs;

? Easy operation and maintenance: fiber transmission, no need to adjust the optical path;

? Use of partition dust removal, centralized filtration device.
