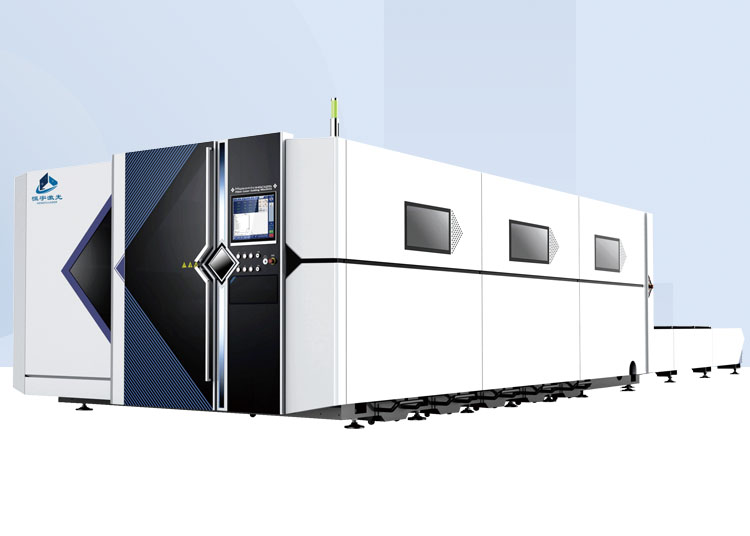

HySonics Eagle Series Laser Cutting Machine

 Tip: Click on the picture to enlarge

Introduction & Application

      HySonics series is high-speed and high-power fiber laser cutting machine,which integrates the latest generation of high-efficiency fiber laser

source. Aiming at the low-end machine tools in the market with slow idle movement and low cutting efficiency. Autonomous Optimum Design of

Third Generation Gantry CNC Machine for Machine Tool performance failure to show high power laser advantage. The whole machine has high

cutting efficiency, strong capability, low operating cost, reliable and stable machine structure, and simple operation. Intelligent; The machine bed

adopts high-strength integral welding machine body, after repeated high-temperature annealing f treatment, large-scale gantry milling machine

precision processing, has good rigidity and stability; uses cast aluminium beam, and after advanced heat treatment process, has the advantages

of high strength, light weight, good rigidity; to import high-speed gear and rack transmission operation, high accuracy, fast speed; The auxiliary bed

adopts parallel exchange, which can be completed within 12 seconds. The exchange efficiency is high and it is a sharp tool for thin plate cutting.

Mainly for the high-speed precision cutting of metal sheets below 50mm.


Technology Advantage

◆ The machine tool adopts high strength integral welding machine bed, which is annealed at high temperature to eliminate stress and not deformed.

◆ Imported high-precision ball screw/gear rack transmission, high-precision linear guider;

◆ Driven by imported servo motor, equipped with imported high rigidity precision reducer;

◆ The machine tool is equipped with an automatic lubrication device, and the cutting area is equipped with a dust removal and smoke exhaust device.

◆ Modular structure of laser, high performance and maintenance-free;

◆ Professional cutting software is easy to operate, convenient and flexible, and it can design various graphics and text cutting at will.
